Product Dimensions 6"h x 29.88"w x 18"d

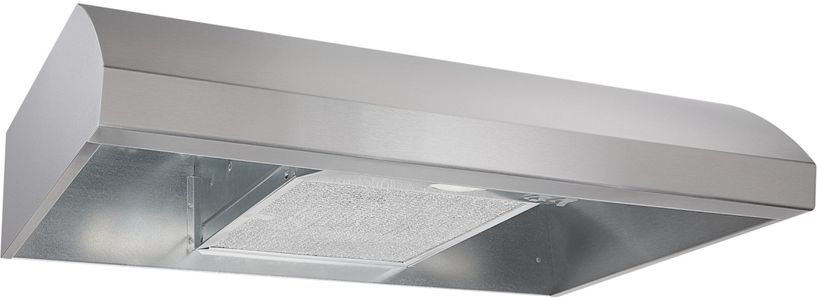

The BXT1 Series Kitchen Exhaust Ventilation Range Hood offers a transitional style with gently round surfaces that make it a great choice for today’s contemporary kitchens. The clean design uses hidden rocker controls to make operation easy and convenient for any user.Read More
Perfect for replacement as well as new installations, this powerful 4-way convertible range hood will fit into most all applications. The enclosed light and fan/filter assembly makes for easier cleaning
The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
With a powerful 2-speed fan offering 270 Max Blower CFM, this range hood provides adequate capture for electric and most gas ranges
The 18” deep design provides 20% more coverage over the cooktop than the standard over-the-range microwave combination units
One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)
Dishwasher-safe aluminum mesh filter provides highly efficient grease removal
ADA compliant, remote operation is possible using a standard UL approved wall switch
Optional 7 in. round BP87Q damper sold separately
Non-duct capable with use of charcoal filter (HPFX1), sold separately. Hidden ductless louvers on top of hood exhaust away from cabinetry
Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
General Specs | |
| Width (in.) | 29.88 |
| Height (in.) | 6 |
| Duct Size (in.) | 3.25" x 10" (8.26cm x 25.4cm) |
| Depth (in.) | 18 |
| Collection | BXT1 |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ADA Compliant | Yes |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 270 |
| Bulb Type | LED |
| Grease Filter Type | Aluminum Mesh |
| Sones Rating | 2.0 - 7.5 |
| Fan Speed Options | 2 |
| Vent Location | Top |
| Height Above Cooktop | 20 - 25 |
| Width (cm) | 75.88 |
| Height (cm.) | 15.24 |
| Depth (cm.) | 45.72 |
| Height Above Cooktop Centimeter | 50.8cm - 63.5cm |
| Voltage | 120 |
| Amp | 1.3 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Specifications | |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| UL Listed | Yes |
| Damper Included | No |
| Material | Stainless Steel |
| Nightlight Or Nightlight Setting | No |
| Remote Operation Capable | No |
| Switch Control Type | Rocker |
| Boost Mode | No |
| Built-In Timer | No |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
