Product Dimensions 5"h x 29.88"w x 22"d

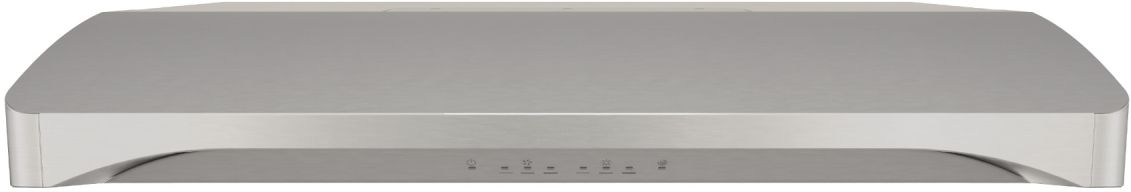

The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Infrared controls, hybrid baffle filters and LED lighting lends a pro-style edge to your kitchen.Read More
Model replaced BQLA130SS
The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 450 Max CFM
Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed
Bright, three-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. colour Temperature 3000 K
Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air
Broan Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch.
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Optional HCR3 handheld remote enables control from anywhere in the kitchen
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
General Specs | |
| Width (in.) | 29.88 |
| Height (in.) | 5 |
| Duct Size (in.) | 7" Round |
| Depth (in.) | 22 |
| Collection | Elite |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 1 Year/ 3 Year LED module |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 450 |
| Bulb Type | LED |
| Sones Rating | 0.4 - 6.0 |
| Fan Speed Options | 3 |
| Width (cm) | 75.9 |
| Height (cm.) | 12.7 |
| Depth (cm.) | 55.88 |
| Voltage | 120 |
| Amp | 4.5 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable, Filter Indicator, Heat Sensor |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Overall Specifications | |
| Filter Type | Hybrid Baffle |
| Duct Direction | Horizontal/ Vertical |
| Capture Efficiency | 98.5 |
| Built-In Timer | No |
| Country of Origin | Mexico |
| Boost Mode | No |
| Switch Control Type | Infrared |
| UL Listed | Yes |
