Product Dimensions 5"h x 29.88"w x 22"d

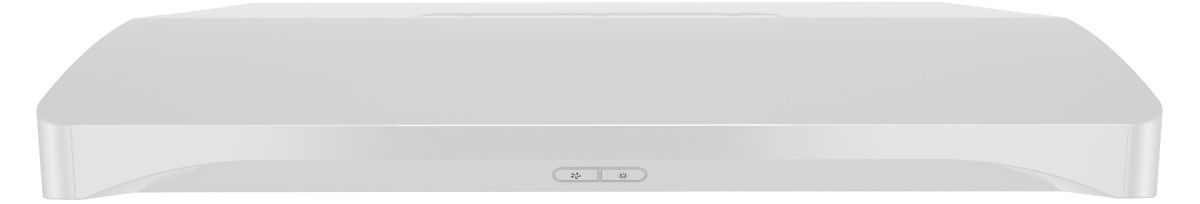

The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Wide curves, tap-touch capacitive controls and LED lighting present a clean, striking design. Equipped with the exclusive Broan Captur™ system, which combines advanced blower design with new filter technology, this 375 MAX Blower CFM-rated hood provides 98.1% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking.Read More
Model replaced BQDD130WW
Captur™ systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
Bright, two-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. colour Temperature 3000 K
Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch.
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
General Specs | |
| Width (in.) | 29.88 |
| Height (in.) | 5 |
| Duct Size (in.) | 7" Round |
| Depth (in.) | 22 |
| Collection | Elite |
| Color | White |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 1 Year/ 3 Year LED module |
| Color Finish Name | White |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 375 |
| Bulb Type | LED |
| Sones Rating | 1.5 - 6 |
| Fan Speed Options | 3 |
| Width (cm) | 75.9 |
| Height (cm.) | 12.7 |
| Depth (cm.) | 55.88 |
| Voltage | 120 |
| Amp | 0.65 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable, Filter Indicator |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Overall Specifications | |
| Filter | Deluxe Micro Mesh |
| Duct Direction | Horizontal/ Vertical |
| Capture Efficiency | 98.1 |
| Built-In Timer | No |
| Country of Origin | Mexico |
| Boost Mode | No |
| Switch Control Type | Capacitive Touch |
| UL Listed | Yes |
